Automatic flat washer punching equipment
Washer punching machine Nominal force:2000KN

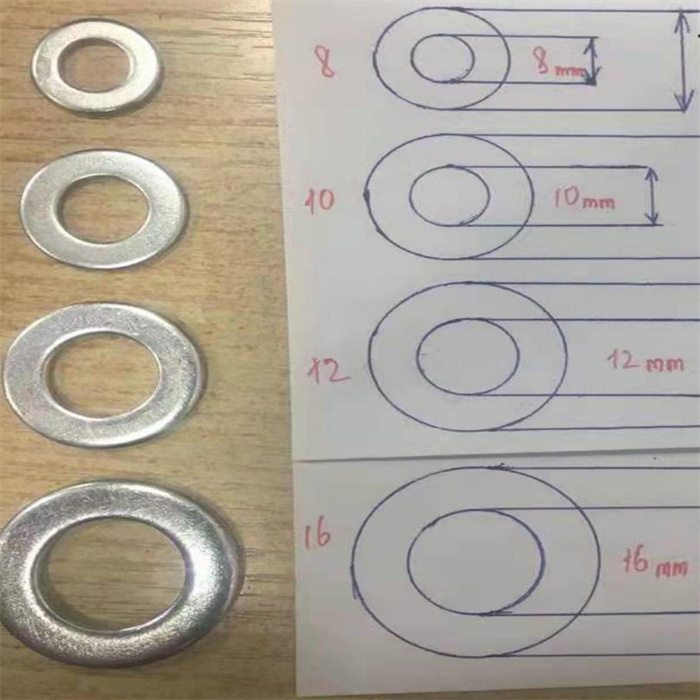

Washer specification:8mm,10mm,12mm,16mm
Description

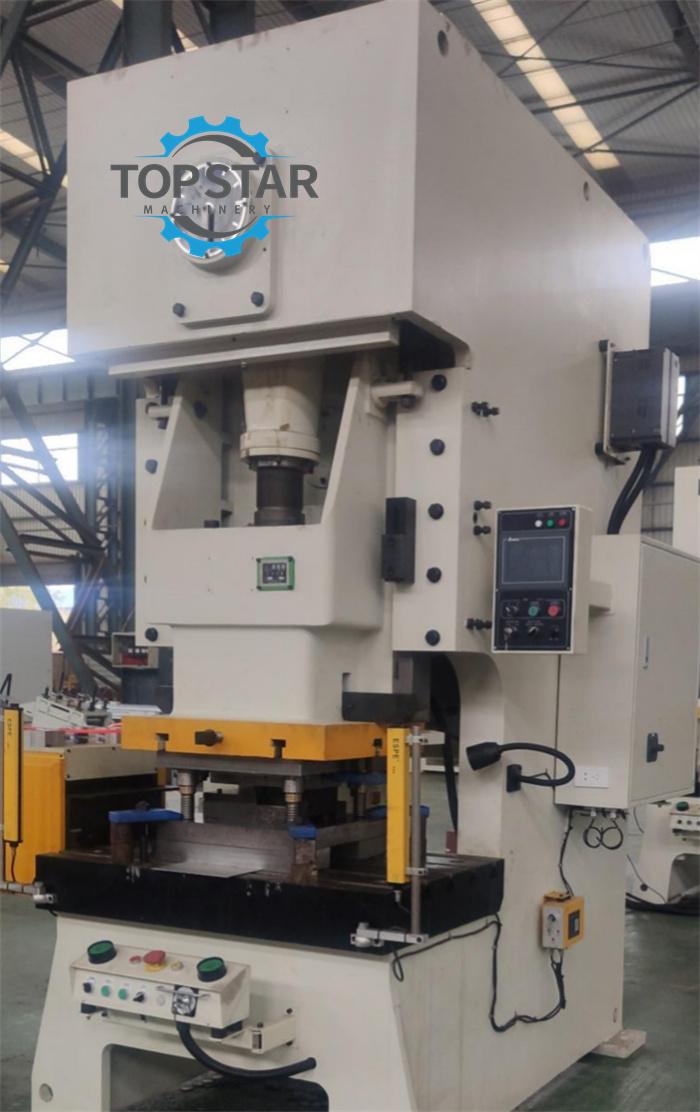

Automatic flat washer punching equipment is in our factory customize according to the market demand and development direction, the collection of foreign advanced design concepts to develop a new type of open single point punch. The body of the punch machine is designed into a C-shaped frame structure, after tempering processing, which has the characteristics of fine holding, strong machine rigidity, suitable for punching, blanking, shallow drawing, and other processing.
Automatic flat washer punching equipment specification
| Item No | Item | Unit | Remark | |
| 1 | Quantity | Set | 1 | |
| 2 | Structure | Open single point | ||
| 3 | Nominal force | KN | 2000 | |
| 4 | Capability occurrence point | mm | 6 | |
| 5 | Slide block stroke | mm | 180 | customized |
| 6 | Number of stroke | times/min | 20–40 | customized |
| 7 | max mould assembly height | mm | 390 | customized |
| 8 | mould assembly height adjust scale | mm | 110 | |
| 9 | mould assembly height adjust method | Electric | ||
| 10 | upper platform dimension | mm | 800*600 | customized |
| 11 | down platform dimension | mm | 760*1400 | customized |

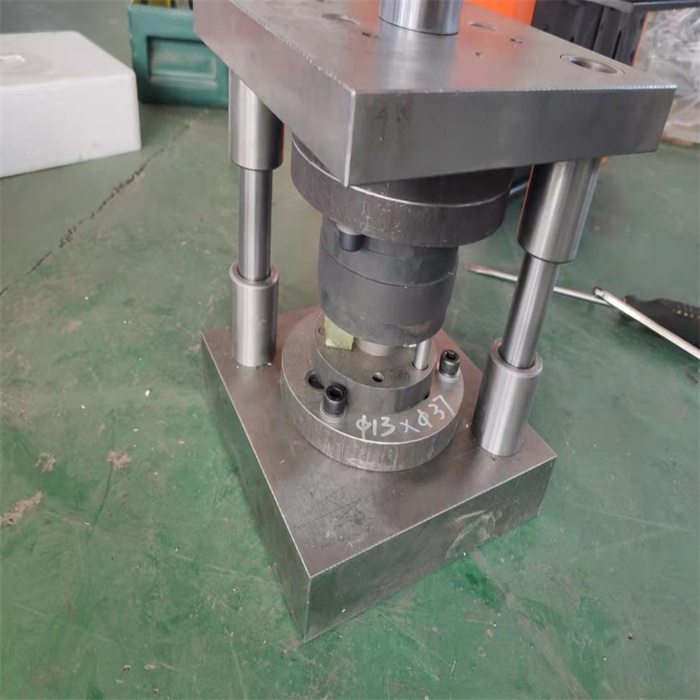

Automatic flat washer punching equipment mold
The molds are divided into two parts: the shelf and the core. Different models can share a mold frame, just replace the core of the core. You can disassemble it yourself on the punching bed for easy operation.
