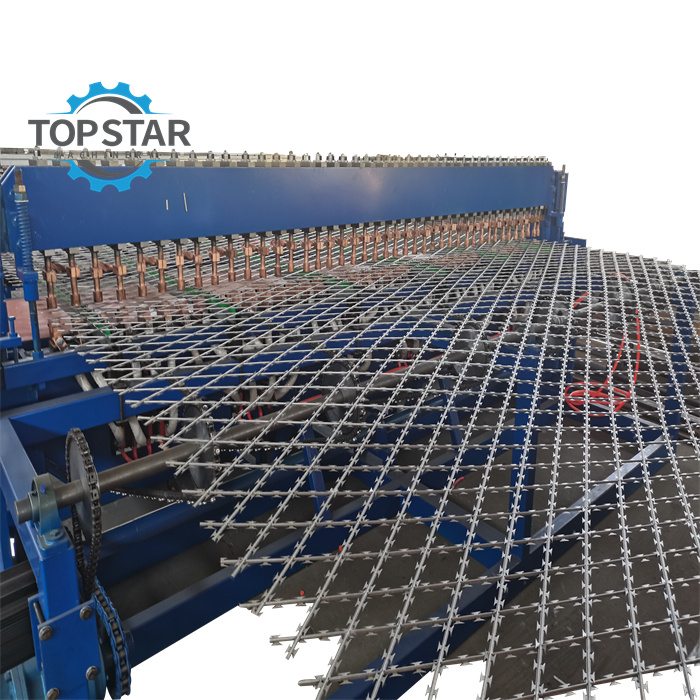

Concertina razor mesh welding machine
Razor type:BTO-10/22/25,CBT-60/65
Razor wire diameter:2.0- 2.8mm
Concertina razor Mesh opening size:150*75mm, 300*150mm
Description
The Concertina Razor Barbed Wire Mesh Welding Machine, also known as the Blade Barbed Wire Welding Machine or Blade Barbed Wire Rope Welding Machine, is a machine specifically designed for welding fence blade barbed wire. Our machine comes in popular sizes of 300*150mm and 150*75mm, with adjustable mesh sizes. The feeding of the blade barbed wire can be done automatically or manually, making it very convenient. In addition, our machine is equipped with a high-temperature water cooling system to ensure it does not overheat during long periods of operation.
Concertina razor mesh welding machine which will allow you to produce weld razor wire meshes of different sizes. Line wire and cross wire distance are adjustable.
| Machine Type | Concertina razor mesh welding machine |
| Main Components | Engine, Gearbox, Motor, Pressure vessel |
| Concertina razor mesh width | Max.3000mm |
| Welding electrode | 40pcs |
| Welding transformer | 125kva x 6pcs |
| Razor wire diameter | 2.0 – 2.8mm |
| Concertina razor Mesh opening size | 150 x 75mm, 300 x 150mm |
| Welding speed | 20 – 30 times/min |
| Razor type | BTO-10/22/25,CBT-60/65 |
| Concertina razor mesh application | Farms, Construction works, Other |
| Voltage | 380V, 50Hz,or customized |
| Power (KW) | 4.5 |
| Weight (KG) | 4000 |
| Machine size | 6.4 x 3.2 x 1.6m |
Our Blade Barbed Wire Welding Machine not only offers competitive prices but also provides the best service. Our customer service team is ready to answer your questions and provide technical support and after-sales service.
If you are interested in our Blade Barbed Wire Welding Machine, please feel free to contact us. We look forward to cooperating with you.
