Description

The cotter pin machine is designed for the production of cotter pins from wire. The wire is fed from the coil holder into the roll wire feed system, and then the wire passes through the guide sleeve and enters the forming die. Adjustment and fine-tuning of the machine are possible on moving elements where articulated tips are installed, then it will produce a cotter pin. Wire feed setting, turning off/on of hydraulic cylinders, stroke, and duration are performed by the PLC controller.

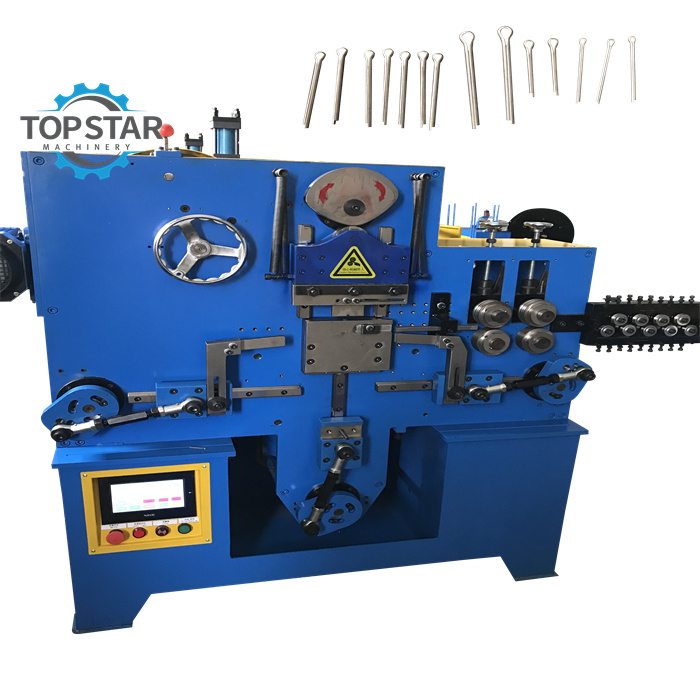

Mechanical cotter pin machine

Cotter Pin Machine model: TCM-8.0

Wire diameter: 3.2 – 8.0mm

Cotter Pin length: 40 – 100mm

Main machine power: 3.0 kW

Voltage/Frequency: 380v/50hz

Cotter Pin Production Capacity: 30 – 60 pieces per minute

Weight:1000kgs

Cotter pin Mould: 1 pc of mold for free

Wire stand: 1 pc of wire pay-off stand

Outside dimension: 1600 x 800 x 1700mm
