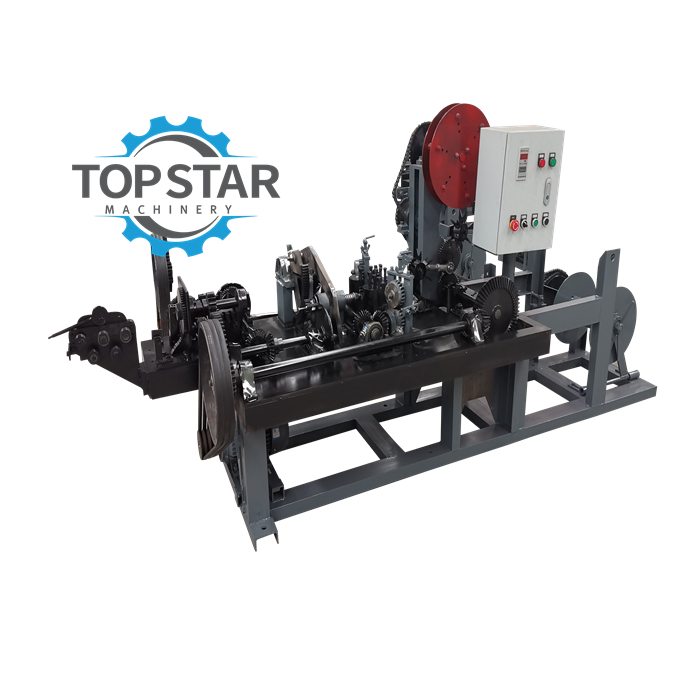

Double wire twist barbed wire making machine CS-C
Barbed Distance:3'(7.5cm) 4'(10cm) 5'(12.5cm) 6'(15cm)
Line wire diameter:1.6-2.8 mm
Barbed wire diameter:1.6-2.4 mm
Motor power:2.2 kw
Description
Double wire positive and negative twist barbed wire making machine CS-C
The barbed wire making machine is divided into double strand barbed wire making machine (CS-A), single strand barbed wire making machine (CS-B), Positive and negative twist barbed wire making machine （CS-C）, blade razor barbed wire machine.
The double wire positive and negative twisting barbed wire machine (CS-C) is composed of positive and negative twisting, barbed winding and friction rope take-up, and is equipped with four take-up discs.

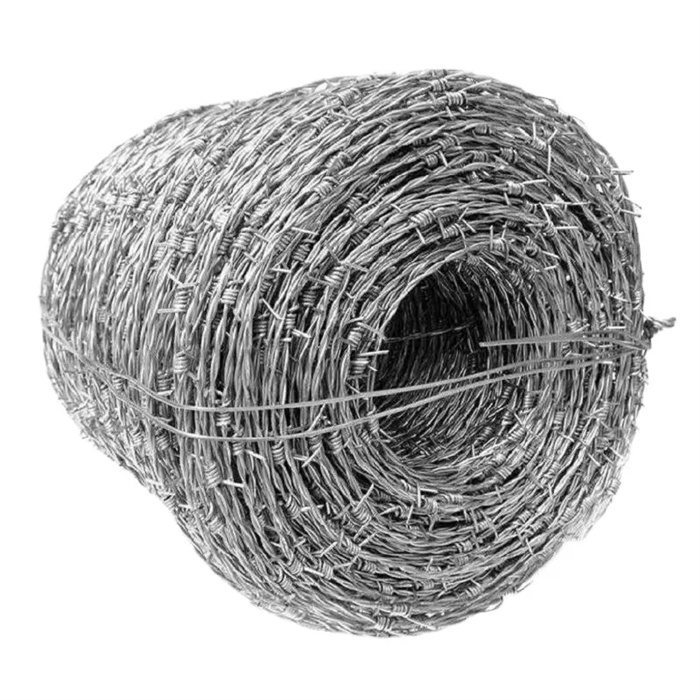

This machine has the advantages of convenient operation, stable action, low noise and energy saving, and adopts advanced electronic counting control.the products produced by this machine are widely used in national defense, railways, highways, farming and animal husbandry for protection and fencing.
|
Double wire positive and negative twist barbed wire making machine （CS-C)
|
||||
|
Motor power
|
2.2 kw
|
|||
|
Theoretical output
|
40kg/h
|
|||
|
Machine weight
|
1080 KG
|
|||
|
Barbed Distance
|
3′(7.5cm) 4′(10cm) 5′(12.5cm) 6′(15cm)
|
|||
|
Producing speed
|
3′(540m) 4′(720m) 5′(900m) 6′(1080m)
|
|||
|
Line wire diameter
|
1.6-2.8 mm
|
|||
|
Barbed wire diameter
|
1.6-2.4 mm
|
|||
|
Main drive shaft speed
|
402 r/min
|
|||
|
Overall dimension
|
3000*1100*1300 mm
|
|||
