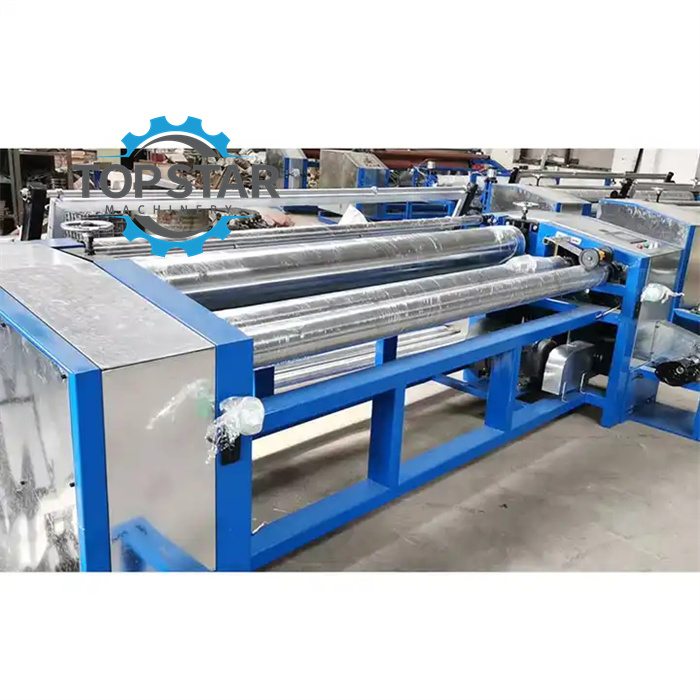

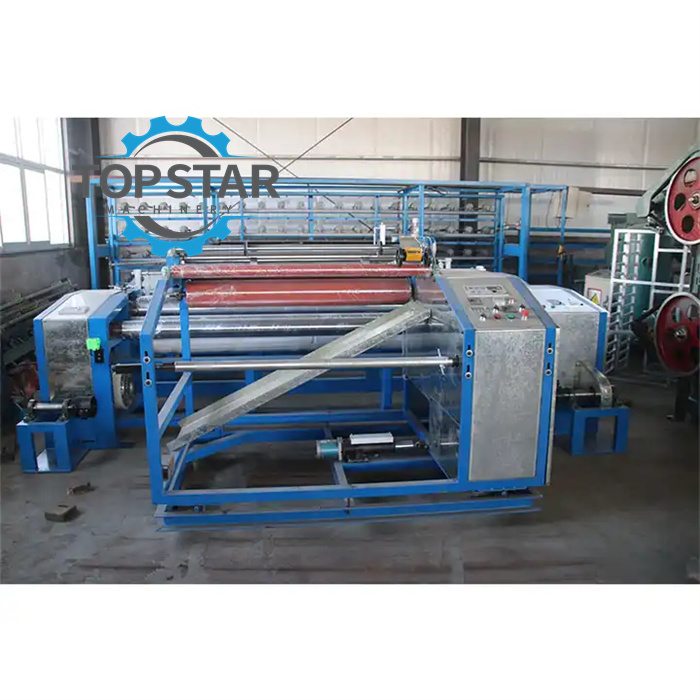

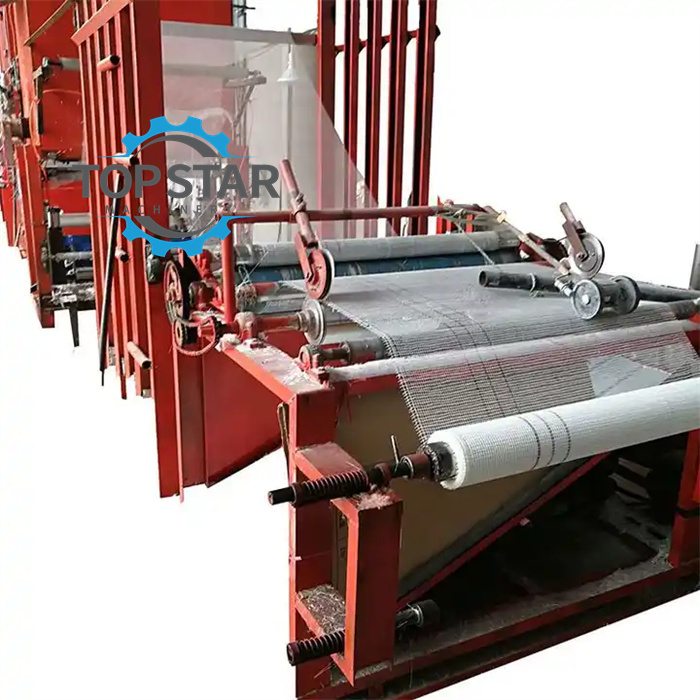

Self-adhesive Fiberglass Mesh Tape Glue Coating Machine
Self-adhesive Fiberglass Mesh Tape Glue Coating Machine
Machine Width:1000mm
Mode of heating:gas/electricity
Machine output: 600-1000M2 / hour
Heating time:10-20mins
Weight:3500kgs
Description
Self-adhesive Fiberglass Mesh Tape Glue Coating Machine

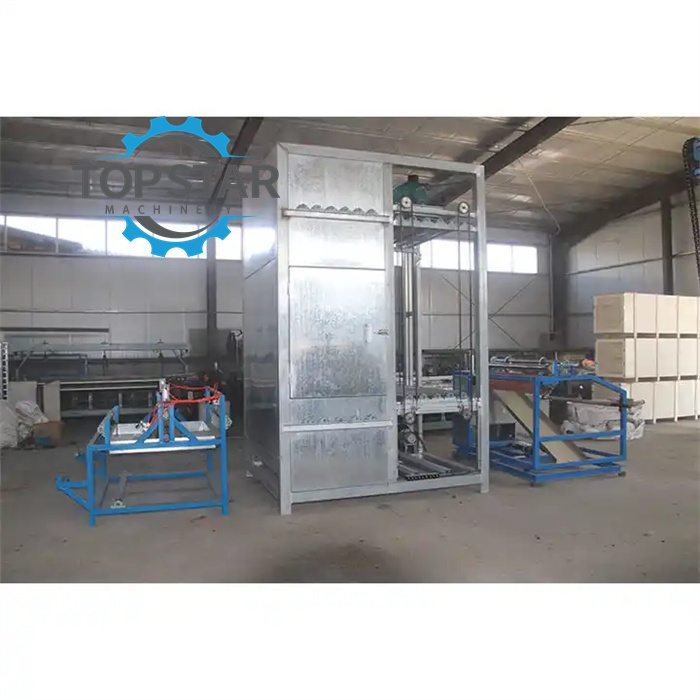

Fiberglass mesh electric coating machine,also named mesh molding machine, grid stereotypes coating machine, mesh gluing machine, mesh cloth dry hanging glue.The vertical type is the most advanced coating machine,which include three parts:coating,drying oven,rolling up.
Machine is used for fiber mesh production after-treatment process, so that the fiberglass mesh glue, drying, curing, rolling and other processes forming a molded fiberglass mesh .The unit through continuous technological innovation has become the new generation of the best energy-saving products.
Machine features:
1 vertical oven type need less area than horizontal type.
2 vertical oven type is more electric energy saving than horizontal type.
3 the frequency converter speed control, synchronization control, easy operation, one coating machine can match up 8-10 sets weaving machines.
4.net cloth on the glue, drying setting, automatic correction of the cut edge, fixed length of one-time molding.
Equipment parameters:
Control mode: electric cabinet control
Equipment power: 40-45KW
Heating time: 10-20 minutes
Equipment output: 600-1000M2 / hour
Speed control: speed motor control, speed range of 0-1000 M / h
Width: 1 meters (special custom width)
Equipment weight: 3500 kg
Package: nude or wooden case.
Guarantee period: 1 years
Services: After sales service is available.
Fiberglass Mesh Tape Glue Coating Machine Specification:
| Model | Mode of heating | Capacity(m2/h) | Preheating time(min) | Width of mesh | Power (kw) | Dimension(mm) |
| TJL-D1000 | Electric | 600-900 | 15 | 1000mm | 48 | 6000x2000x3800 |
| TJL-S1000 | Electric | 1600—2500 | 20 | 1000mm | 95 | 12000x2000x11000 |
| TJL-SQ1000 | Gas | 1600—2500 | 30 | 1000mm | 8 | 12000x2000x11000 |

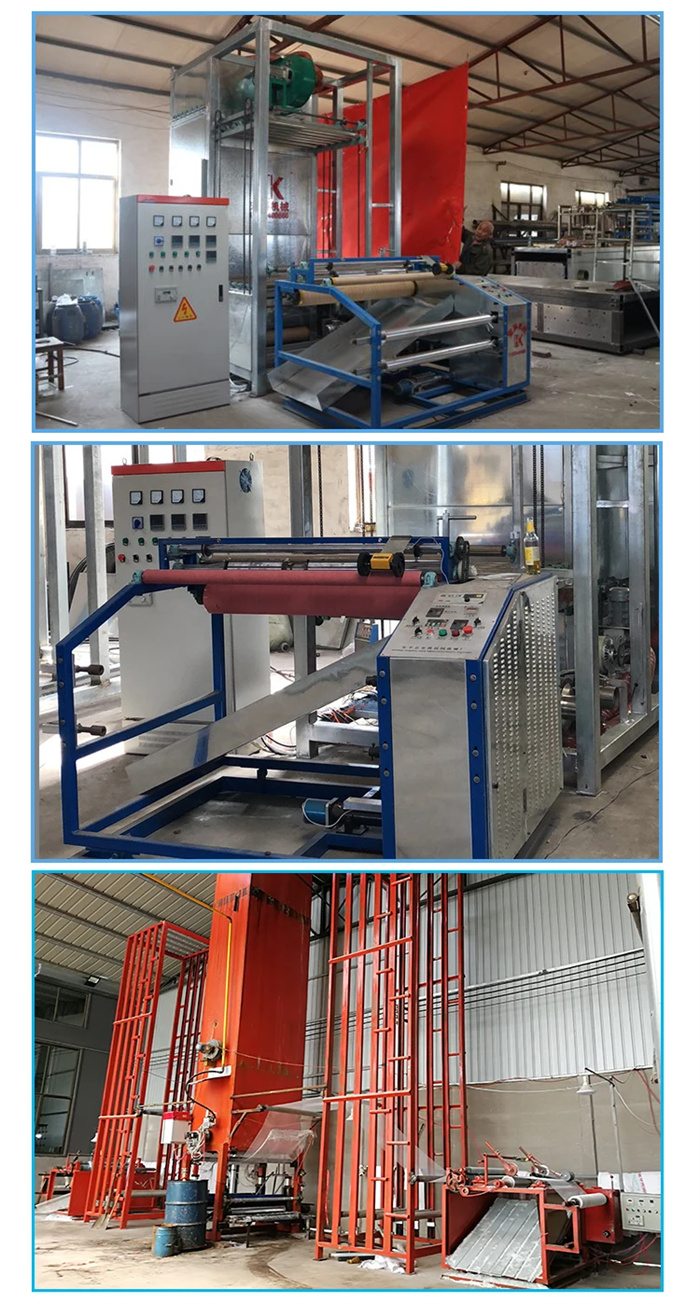

The coating machine produced has two kind:oil heating and electric heating, which can be customized according to customers’ needs.Machine include:coating part,drying part and rolling up parts.
This machine is suitable for the processing grinding wheel mesh and the fiberglass mesh with a width of 2m or less, so that the process of gluing, drying, solidifying and winding of the fiberglass mesh is formed once, and the fiberglass mesh after molding is formed. The glue spread evenly, amount of spread suitable, no displacement, and rewinding is very smooth.
