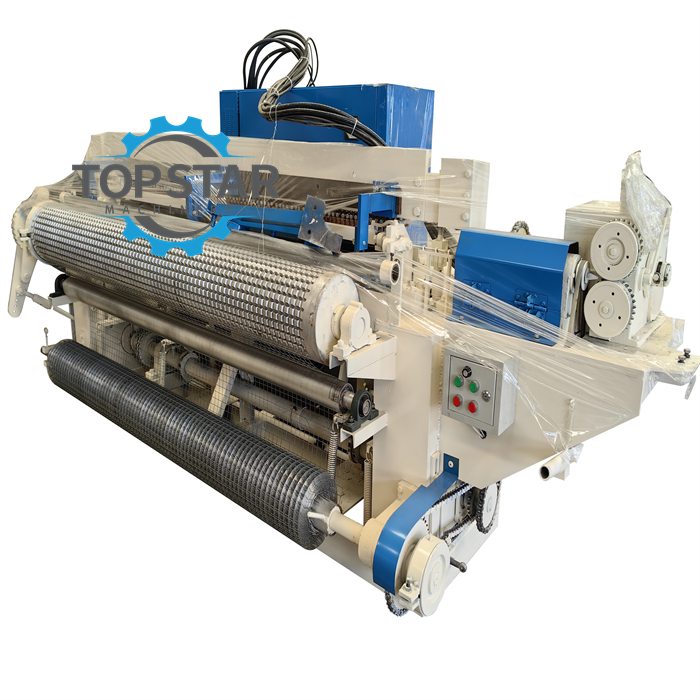

Welded wire mesh machine
Wire Diameter: 1 - 2.8mm
mesh opening size:25*25mm
Mesh width:500-3000mm
Description

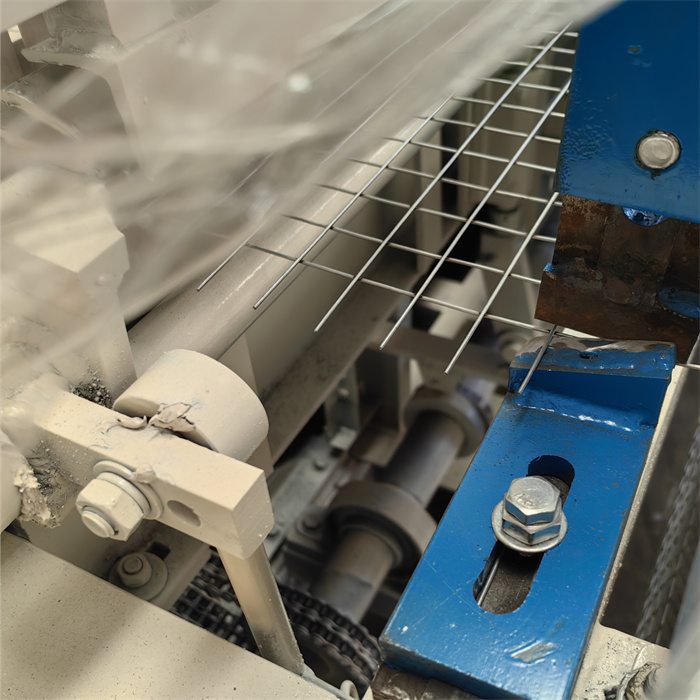

The new electric welded mesh machine with rubber shaft is newly designed and suited for a larger range of diameters and different mesh sizes. Different from the traditional system of mesh pulling. By using rubber shaft pulling, the mesh size can be any size under 25 – 200mm.
Welded mesh machine PLC specification
| Machine Parameter | Unit | Information | Remark | |
| Wire Diameter | mm | 1 – 2.8 | – | |
| Welded Mesh width max | mm | 3000 | – | |
| Welded Mesh length max | mm | unlimited | – | |
| Minimum mesh opening size | Vertical | mm | 25 | customized |
| Horizontal | mm | 25 | customized | |
| Welding spot | Piece | 82 | – | |
| Welding frequency | Times/minutes | 100 – 120 | – | |
| Transformer KVA | KVA | 125 x 5 | – | |
| Power | Kw | 7.5 | 3 phase | |
| Voltage | V | 380 | Adjustable | |
| Current frequency | Hz | 60 | Adjustable | |
| Control system | – | – | PLC totally touch-screen | |
| Welding type | – | Mechanical | Electric resistance welding | |
| Line wire feeding type | – | – | Automatic wire
coil feeding |
|
| Cross-wire feeding type | – | – | ||
| Machine list | Main machine, holding wire platform, drag mesh device, cross wire feeding, PLC control (Mitsubishi brand), wire stand | |||
- Welded mesh machine PLC specification
- Delta (Taiwan) plc
- Weinview (taiwan) aanraakscherm
- Schneider (frankrijk) laagspanningsapparatuur
- Schneider (frankrijk) relais
- Schneider (frankrijk) luchtschakelaar
- Meanwell (taiwan) voeding
- Delta (taiwan) omvormer
- Fuji (japan) servo driver
Servo-stuurprogramma voor delta (taiwan)
