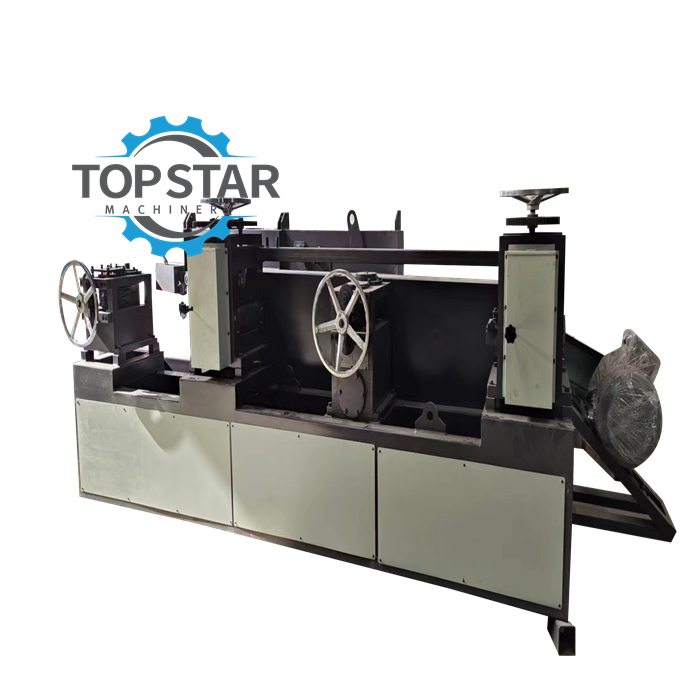

Wire rod making machine
Wire rod making machine
Rolling plate thickness: 2mm-4mm
plate width: no more than 20mm
Description
1. Rolling range: plate thickness 2mm-4mm, plate width not exceeding 20mm
2. The diameter of the new three-connected main pressing roll is 220mm, the width of the pressing roll is 140mm, and the material is Cr12Mov; the roll diameter of the incoming line leveling wheel is 180mm, the thickness is 70mm, and the material is Cr12Mov; the roll diameter of the cross rolling mill is 180mm, the thickness is 70mm, and the material is Cr12Mov;
3. The motor is 37 kilowatts, the frequency converter is 37KW; the speed is 60-80 meters per minute; the 224 type hard tooth surface reducer is ZLY-224 type, and all abrasive tools are equipped with synchronous lifting gears.
4. Equipped with an up and down adjustment mechanism, ductile iron frame, corner joint bearing 7316B.
5. Equipped with 1 frequency conversion console and 1 remote control.
6. Equipped with a circulating water system and a built-in circulating pump, which can effectively cool the edge materials and increase the speed.
7. Equipped with an outer protective cover for the whole machine, which is elegant, beautiful, and safe to operate.
Overall dimensions 5000*1700*1400 Weight 3 tons
